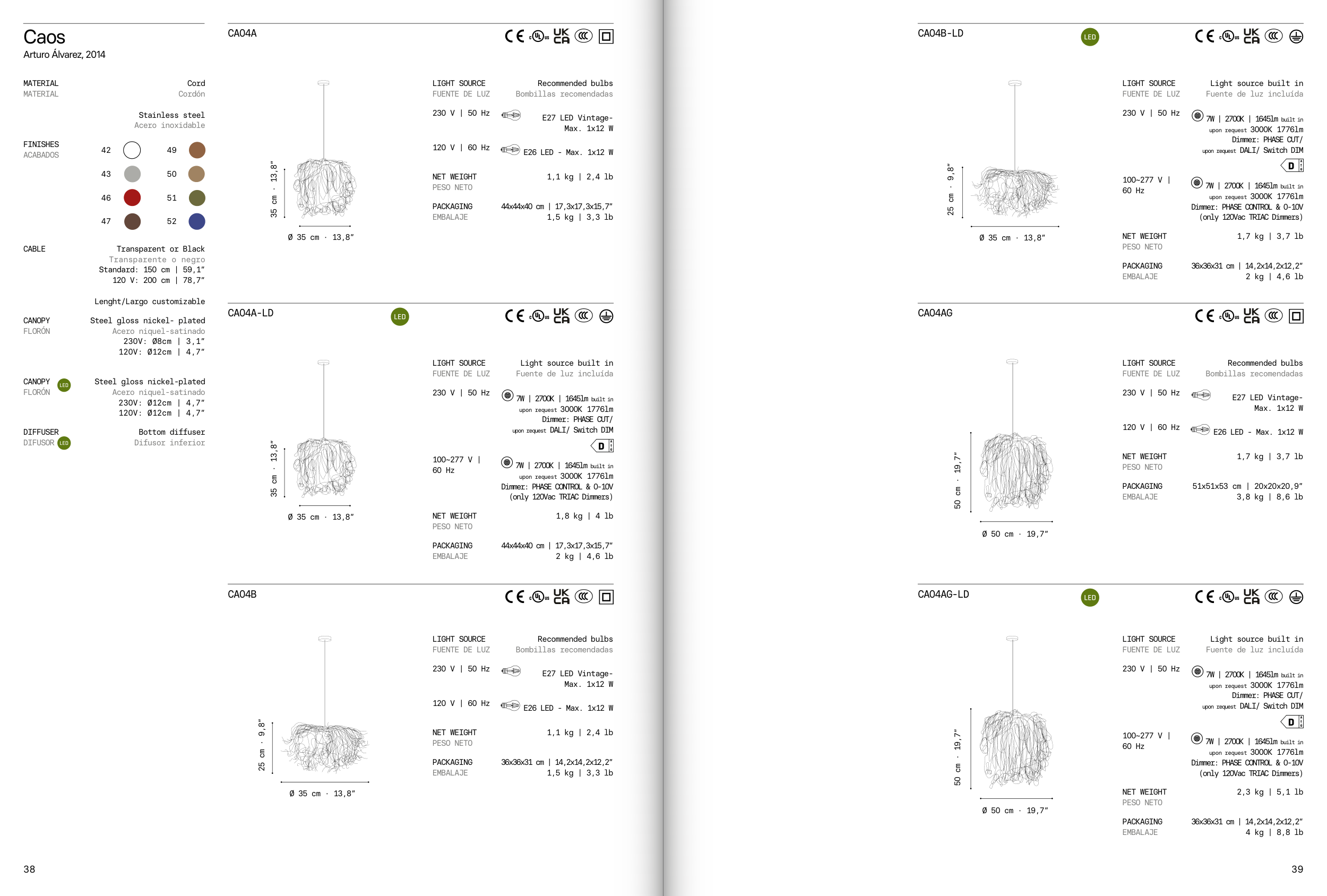

Caos
Arturo Álvarez, 2014
CA04A
CA04B-LD
CA04A-LD
CA04AG
CA04B
CA04AG-LD
Ø 35 cm · 13,8”
Ø 35 cm · 13,8”
Ø 50 cm · 19,7”
Ø 50 cm · 19,7”
25 cm · 9,8”
25 cm · 9,8”
50 cm · 19,7”
50 cm · 19,7”
MATERIAL
MATERIAL
Cord
Cordón
Stainless steel
Acero inoxidable
FINISHES
ACABADOS
42
49
43
50
46
51
47
52
CABLE
Transparent or Black
Transparente o negro
Standard: 150 cm | 59,1”
120 V: 200 cm | 78,7”
Lenght/Largo customizable
CANOPY
FLORÓN
Steel gloss nickel- plated
Acero niquel-satinado
230V: Ø8cm | 3,1”
120V: Ø12cm | 4,7”
CANOPY
FLORÓN
Steel gloss nickel-plated
Acero niquel-satinado
230V: Ø12cm | 4,7”
120V: Ø12cm | 4,7”
DIFFUSER
DIFUSOR
Bottom diffuser
Difusor inferior
Ø 35 cm · 13,8”
Ø 35 cm · 13,8”
35 cm · 13,8”
35 cm · 13,8”
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E27 LED Vintage-
Max. 1x12 W
120 V | 60 Hz
E26 LED - Max. 1x12 W
NET WEIGHT
PESO NETO
1,1 kg | 2,4 lb
PACKAGING
EMBALAJE
44x44x40 cm | 17,3x17,3x15,7”
1,5 kg | 3,3 lb
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
7W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT/
upon request DALI/ Switch DIM
100~277 V |
60 Hz
7W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
1,7 kg | 3,7 lb
PACKAGING
EMBALAJE
36x36x31 cm | 14,2x14,2x12,2”
2 kg | 4,6 lb
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E27 LED Vintage-
Max. 1x12 W
120 V | 60 Hz
E26 LED - Max. 1x12 W
NET WEIGHT
PESO NETO
1,1 kg | 2,4 lb
PACKAGING
EMBALAJE
36x36x31 cm | 14,2x14,2x12,2”
1,5 kg | 3,3 lb
A
G
D
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E27 LED Vintage-
Max. 1x12 W
120 V | 60 Hz
E26 LED - Max. 1x12 W
NET WEIGHT
PESO NETO
1,7 kg | 3,7 lb
PACKAGING
EMBALAJE
51x51x53 cm | 20x20x20,9”
3,8 kg | 8,6 lb
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
7W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT/
upon request DALI/ Switch DIM
100~277 V |
60 Hz
7W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
2,3 kg | 5,1 lb
PACKAGING
EMBALAJE
36x36x31 cm | 14,2x14,2x12,2”
4 kg | 8,8 lb
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
7W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT/
upon request DALI/ Switch DIM
100~277 V |
60 Hz
7W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
1,8 kg | 4 lb
PACKAGING
EMBALAJE
44x44x40 cm | 17,3x17,3x15,7”
2 kg | 4,6 lb
A
G
D
A
G
D
