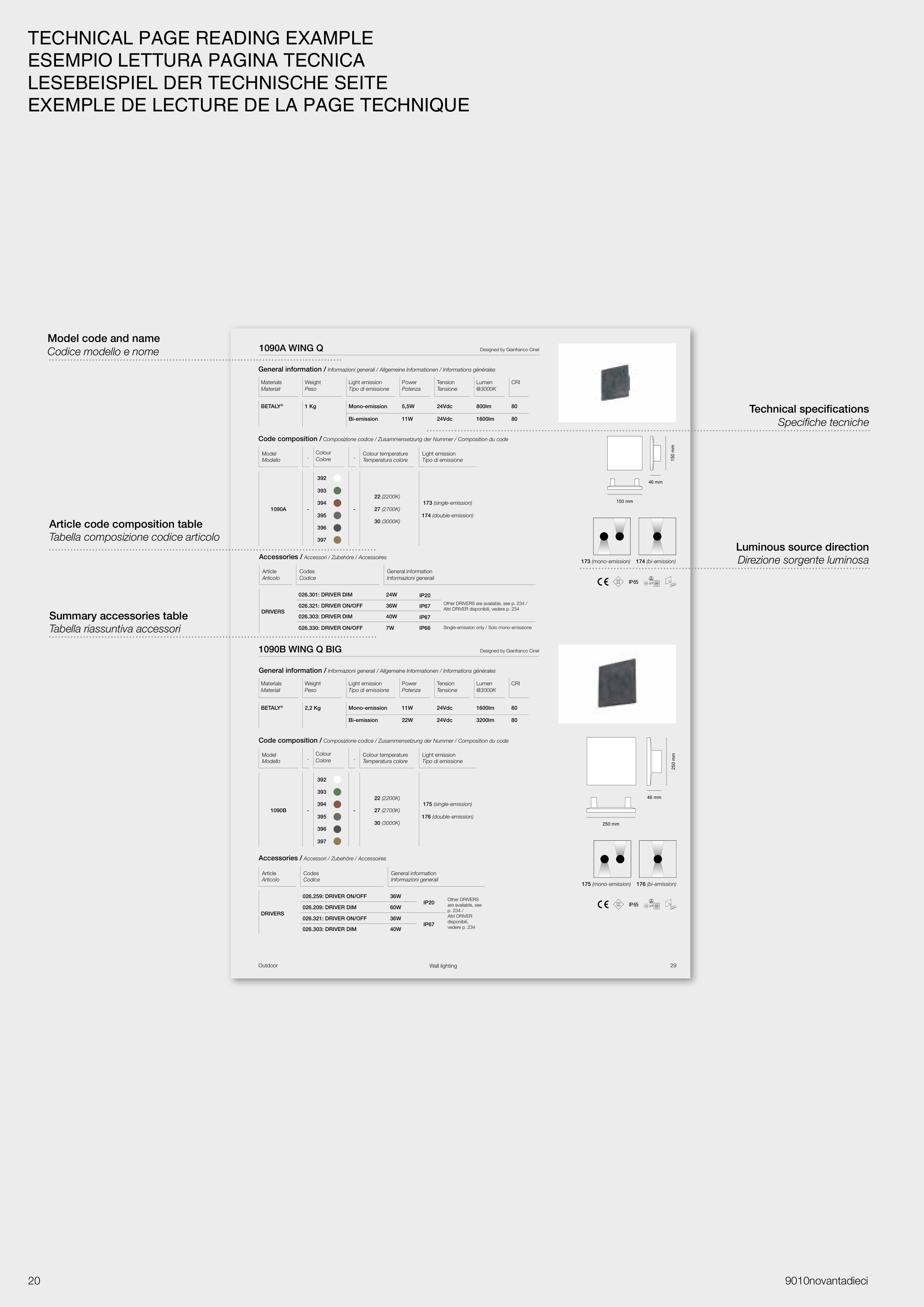

TECHNICAL PAGE READING EXAMPLE
ESEMPIO LETTURA PAGINA TECNICA
LESEBEISPIEL DER TECHNISCHE SEITE
EXEMPLE DE LECTURE DE LA PAGE TECHNIQUE
Outdoor
Wall lighting
29
1090B WING Q BIG
175 (mono-emission)
176 (bi-emission)
1090A WING Q
General information / Informazioni generali / Allgemeine Informationen / Informations générales
General information / Informazioni generali / Allgemeine Informationen / Informations générales
Code composition / Composizione codice / Zusammensetzung der Nummer / Composition du code
Code composition / Composizione codice / Zusammensetzung der Nummer / Composition du code
Materials
Materiali
Weight
Peso
Light emission
Tipo di emissione
Power
Potenza
Tension
Tensione
Lumen
@3000K
CRI
BETALY®
1 Kg
Mono-emission
5,5W
24Vdc
800lm
80
Bi-emission
11W
24Vdc
1600lm
80
Materials
Materiali
Weight
Peso
Light emission
Tipo di emissione
Power
Potenza
Tension
Tensione
Lumen
@3000K
CRI
BETALY®
2,2 Kg
Mono-emission
11W
24Vdc
1600lm
80
Bi-emission
22W
24Vdc
3200lm
80
Accessories / Accessori / Zubehöre / Accessoires
Accessories / Accessori / Zubehöre / Accessoires
173 (mono-emission)
174 (bi-emission)
Model
Modello
-
Colour
Colore
-
Colour temperature
Temperatura colore
Light emission
Tipo di emissione
1090A
-
392
393
394
395
396
397
-
22 (2200K)
27 (2700K)
30 (3000K)
173 (single-emission)
174 (double-emission)
Model
Modello
-
Colour
Colore
-
Colour temperature
Temperatura colore
Light emission
Tipo di emissione
1090B
-
392
393
394
395
396
397
-
22 (2200K)
27 (2700K)
30 (3000K)
175 (single-emission)
176 (double-emission)
Designed by Gianfranco Cinel
Designed by Gianfranco Cinel
150 mm
150 mm
46 mm
250 mm
250 mm
46 mm
IP 20
IP 44
IP 20
IP 44
Article
Articolo
Codes
Codice
General information
Informazioni generali
DRIVERS
026.259: DRIVER ON/OFF
36W
IP20
Other DRIVERS
are available, see
p. 234 /
Altri DRIVER
disponibili,
vedere p. 234
026.209: DRIVER DIM
60W
026.321: DRIVER ON/OFF
36W
IP67
026.303: DRIVER DIM
40W
Article
Articolo
Codes
Codice
General information
Informazioni generali
DRIVERS
026.301: DRIVER DIM
24W
IP20
Other DRIVERS are available, see p. 234 /
Altri DRIVER disponibili, vedere p. 234
026.321: DRIVER ON/OFF
36W
IP67
026.303: DRIVER DIM
40W
IP67
026.330: DRIVER ON/OFF
7W
IP66
Single-emission only / Solo mono-emissione
Model code and name
Codice modello e nome
Article code composition table
Tabella composizione codice articolo
Luminous source direction
Direzione sorgente luminosa
Technical specifications
Specifiche tecniche
Summary accessories table
Tabella riassuntiva accessori
