37
Housing box for birckwork
Controcassa per muratura
Emergency Kit
Kit emergenza
Additional Lens Kit
Kit Lente aggiuntiva
Honeycomb Anti-Glare Diffuser
Frangiluce a nido d’ape
023.4018
099.142
p. 62
028.216
General information
Informazioni generali
General information
Informazioni generali
180
115
115
Ø16
28
19
30
120 x 120
Ø22
180
115
115
Ø16
28
41
30
120 x 120
Ø21
Weight
Peso
Material
Materiale
Plasterboard hole
Foro Cartongesso
CRI
0,45 Kg
CRISTALY®
120 x 120 mm
90
Weight
Peso
Material
Materiale
Plasterboard hole
Foro Cartongesso
CRI
0,46 Kg
CRISTALY®
120 x 120 mm
90
Model
Modello
-
Colour temperature
Temperatura colore
- Beam angle
Angolo lente
Current
Corrente
Power
Potenza
Lumens
Lumen
@3000K
Compatible DRIVERS
DRIVER compatibili
(Not included / Non incluso)
N° of pluggable articles
N° di articoli alimentabili
4254A
-
27 (2700K)
30 (3000K)
40 (4000K)
-
187 (20°)
188 (30°)
189 (40°)
190 (50°)
350mA
4W
480lm
026.324: DRIVER ON/OFF
026.300: DRIVER DIM
1-4
1-3
500mA
6W
660lm
026.324: DRIVER ON/OFF
026.300: DRIVER DIM
1-4
1-3
700mA
8,5W
850lm
026.324: DRIVER ON/OFF
026.307: DRIVER DIM
1-4
1-4
900mA
11W
1050lm
026.324: DRIVER ON/OFF
026.307: DRIVER DIM
1-3
1-4
Model
Modello
-
Colour temperature
Temperatura colore
- Beam angle
Angolo lente
Current
Corrente
Power
Potenza
Lumens
Lumen
@3000K
Compatible DRIVERS
DRIVER compatibili
(Not included / Non incluso)
N° of pluggable articles
N° di articoli alimentabili
4254B
-
27 (2700K)
30 (3000K)
40 (4000K)
-
187 (20°)
188 (30°)
189 (40°)
190 (50°)
350mA
4W
480lm
026.324: DRIVER ON/OFF
026.300: DRIVER DIM
1-4
1-3
500mA
6W
660lm
026.324: DRIVER ON/OFF
026.300: DRIVER DIM
1-4
1-3
700mA
8,5W
850lm
026.324: DRIVER ON/OFF
026.307: DRIVER DIM
1-4
1-4
900mA
11W
1050lm
026.324: DRIVER ON/OFF
026.307: DRIVER DIM
1-3
1-4

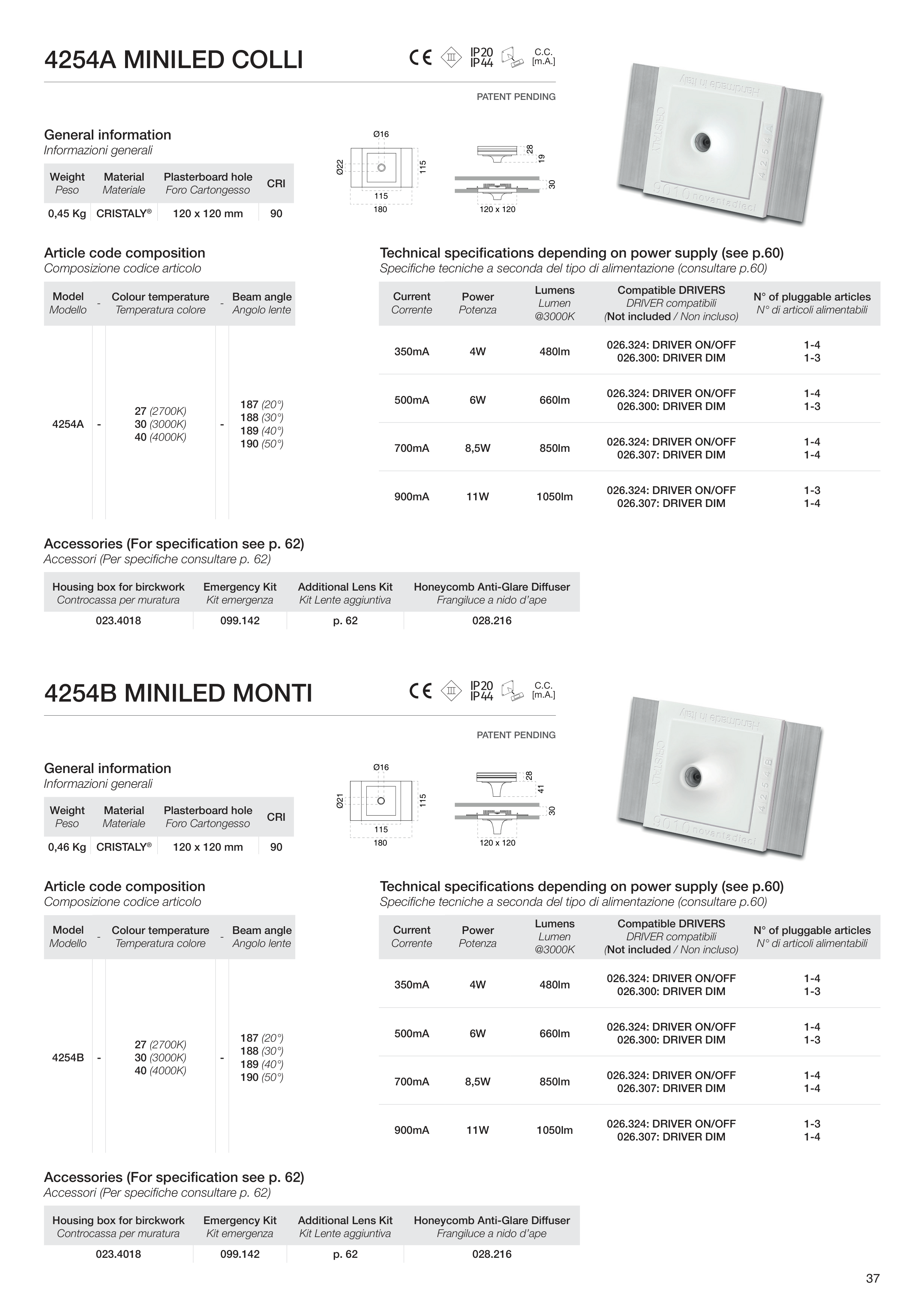

4254A MINILED COLLI
4254B MINILED MONTI
Article code composition
Composizione codice articolo
Article code composition
Composizione codice articolo
Accessories (For specification see p. 62)
Accessori (Per specifiche consultare p. 62)
Accessories (For specification see p. 62)
Accessori (Per specifiche consultare p. 62)
Technical specifications depending on power supply (see p.60)
Specifiche tecniche a seconda del tipo di alimentazione (consultare p.60)
Technical specifications depending on power supply (see p.60)
Specifiche tecniche a seconda del tipo di alimentazione (consultare p.60)
Housing box for birckwork
Controcassa per muratura
Emergency Kit
Kit emergenza
Additional Lens Kit
Kit Lente aggiuntiva
Honeycomb Anti-Glare Diffuser
Frangiluce a nido d’ape
023.4018
099.142
p. 62
028.216
PATENT PENDING
PATENT PENDING
