Indoor
Recessed lighting
21

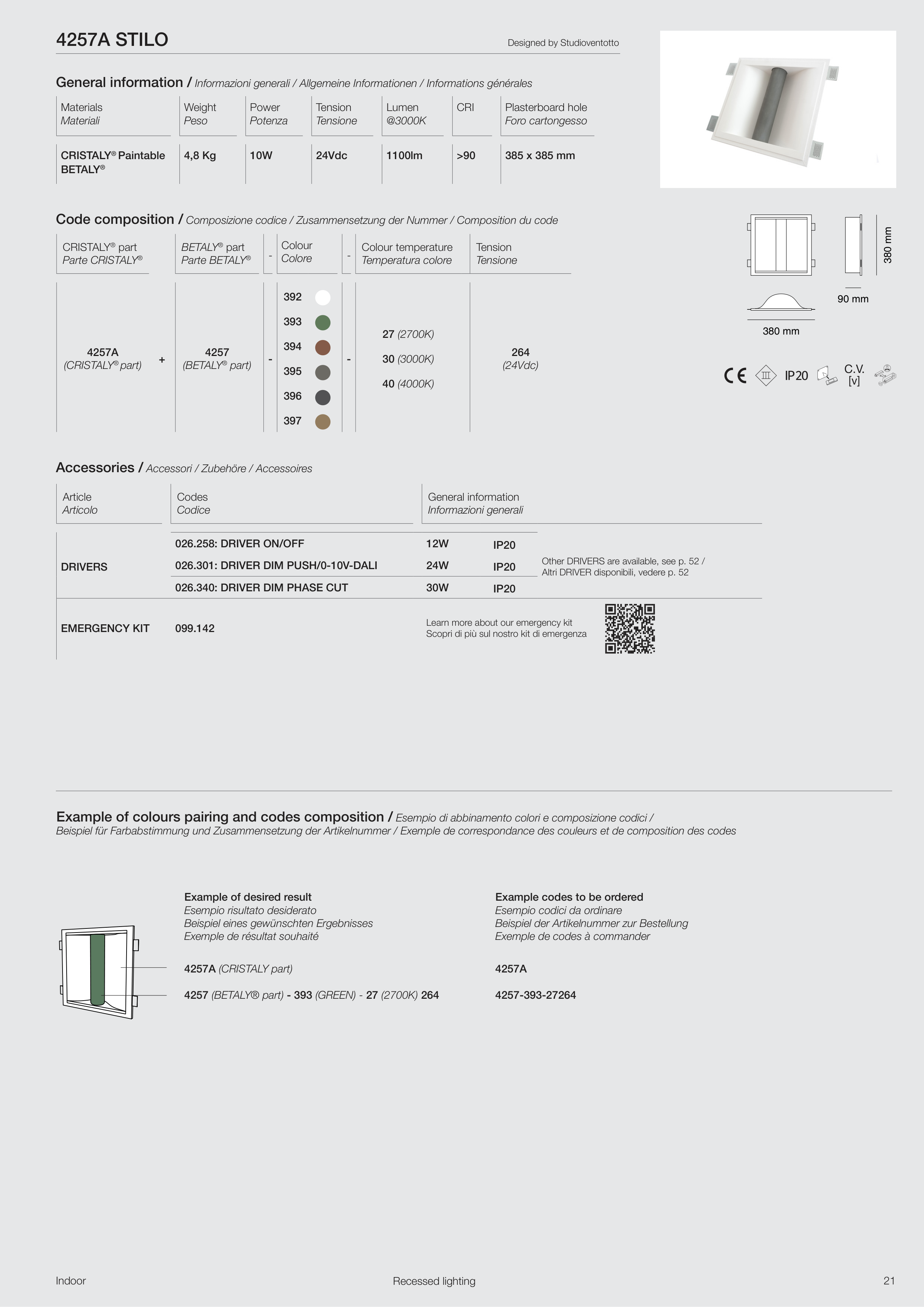

4257A STILO
General information / Informazioni generali / Allgemeine Informationen / Informations générales
Code composition / Composizione codice / Zusammensetzung der Nummer / Composition du code
Designed by Studioventotto
Accessories / Accessori / Zubehöre / Accessoires
Materials
Materiali
Weight
Peso
Power
Potenza
Tension
Tensione
Lumen
@3000K
CRI
Plasterboard hole
Foro cartongesso
CRISTALY® Paintable
BETALY®
4,8 Kg
10W
24Vdc
1100lm
>90
385 x 385 mm
CRISTALY® part
Parte CRISTALY®
BETALY® part
Parte BETALY®
-
Colour
Colore
-
Colour temperature
Temperatura colore
Tension
Tensione
4257A
(CRISTALY® part)
+
4257
(BETALY® part)
-
392
393
394
395
396
397
-
27 (2700K)
30 (3000K)
40 (4000K)
264
(24Vdc)
Example codes to be ordered
Esempio codici da ordinare
Beispiel der Artikelnummer zur Bestellung
Exemple de codes à commander
4257A
4257-393-27264
Example of desired result
Esempio risultato desiderato
Beispiel eines gewünschten Ergebnisses
Exemple de résultat souhaité
4257A (CRISTALY part)
4257 (BETALY® part) - 393 (GREEN) - 27 (2700K) 264
Example of colours pairing and codes composition / Esempio di abbinamento colori e composizione codici /
Beispiel für Farbabstimmung und Zusammensetzung der Artikelnummer / Exemple de correspondance des couleurs et de composition des codes
380 mm
380 mm
90 mm
Article
Articolo
Codes
Codice
General information
Informazioni generali
DRIVERS
026.258: DRIVER ON/OFF
12W
IP20
Other DRIVERS are available, see p. 52 /
Altri DRIVER disponibili, vedere p. 52
026.301: DRIVER DIM PUSH/0-10V-DALI
24W
IP20
026.340: DRIVER DIM PHASE CUT
30W
IP20
EMERGENCY KIT
099.142
Learn more about our emergency kit
Scopri di più sul nostro kit di emergenza
