140 mm
80 mm
31 mm
60 mm
80 mm
160 mm
40 mm
115 mm
538
Segnapassi
Pathmarkers
Orientierungsbeleuchtung
Balisages encastrés
9010novantadieci Indoor

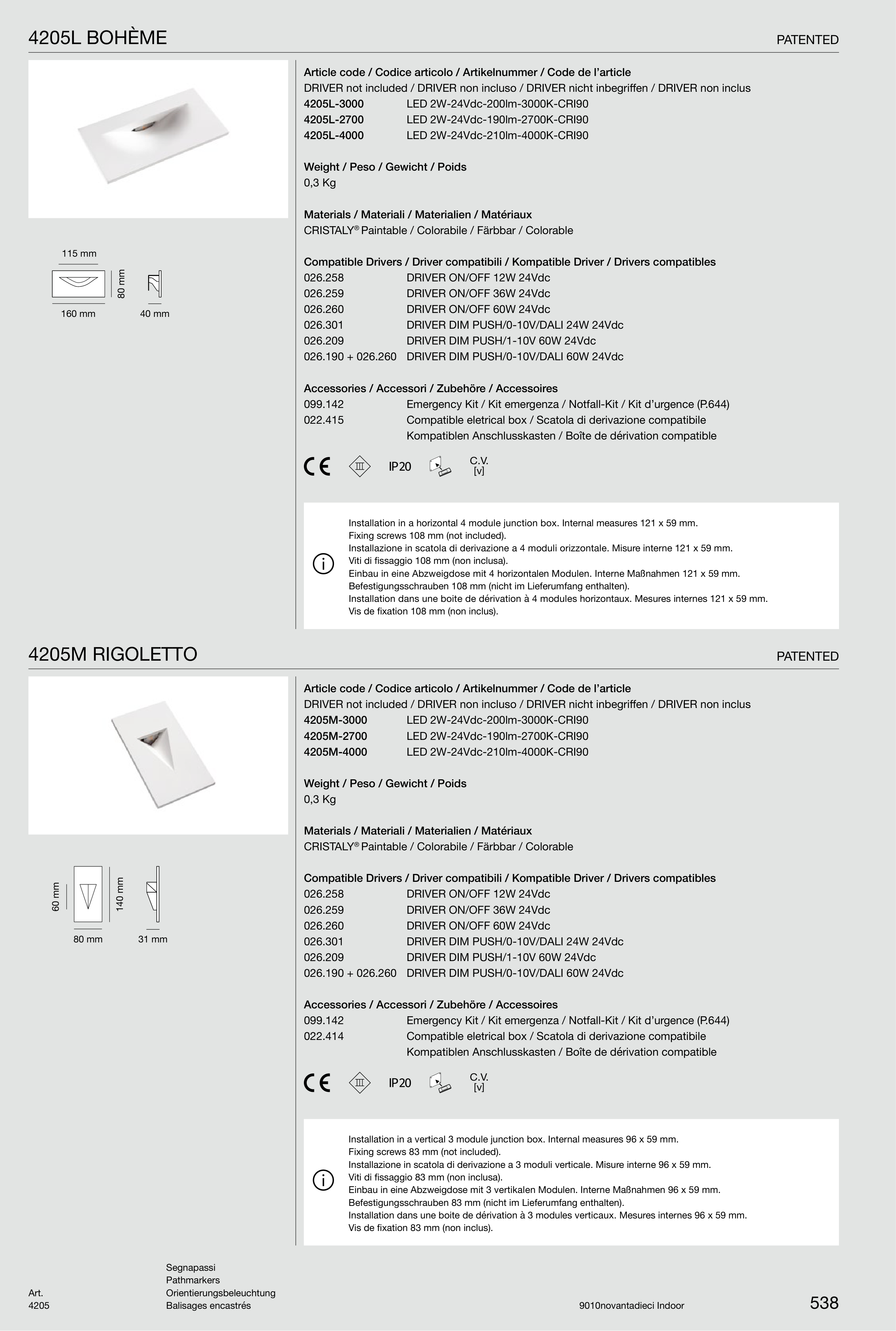

4205L BOHÈME
4205M RIGOLETTO
Article code / Codice articolo / Artikelnummer / Code de l’article
DRIVER not included / DRIVER non incluso / DRIVER nicht inbegriffen / DRIVER non inclus
4205L-3000
LED 2W-24Vdc-200lm-3000K-CRI90
4205L-2700
LED 2W-24Vdc-190lm-2700K-CRI90
4205L-4000
LED 2W-24Vdc-210lm-4000K-CRI90
Weight / Peso / Gewicht / Poids
0,3 Kg
Materials / Materiali / Materialien / Matériaux
CRISTALY® Paintable / Colorabile / Färbbar / Colorable
Compatible Drivers / Driver compatibili / Kompatible Driver / Drivers compatibles
026.258
DRIVER ON/OFF 12W 24Vdc
026.259
DRIVER ON/OFF 36W 24Vdc
026.260
DRIVER ON/OFF 60W 24Vdc
026.301
DRIVER DIM PUSH/0-10V/DALI 24W 24Vdc
026.209
DRIVER DIM PUSH/1-10V 60W 24Vdc
026.190 + 026.260 DRIVER DIM PUSH/0-10V/DALI 60W 24Vdc
Accessories / Accessori / Zubehöre / Accessoires
099.142
Emergency Kit / Kit emergenza / Notfall-Kit / Kit d’urgence (P.644)
022.415
Compatible eletrical box / Scatola di derivazione compatibile
Kompatiblen Anschlusskasten / Boîte de dérivation compatible
Article code / Codice articolo / Artikelnummer / Code de l’article
DRIVER not included / DRIVER non incluso / DRIVER nicht inbegriffen / DRIVER non inclus
4205M-3000
LED 2W-24Vdc-200lm-3000K-CRI90
4205M-2700
LED 2W-24Vdc-190lm-2700K-CRI90
4205M-4000
LED 2W-24Vdc-210lm-4000K-CRI90
Weight / Peso / Gewicht / Poids
0,3 Kg
Materials / Materiali / Materialien / Matériaux
CRISTALY® Paintable / Colorabile / Färbbar / Colorable
Compatible Drivers / Driver compatibili / Kompatible Driver / Drivers compatibles
026.258
DRIVER ON/OFF 12W 24Vdc
026.259
DRIVER ON/OFF 36W 24Vdc
026.260
DRIVER ON/OFF 60W 24Vdc
026.301
DRIVER DIM PUSH/0-10V/DALI 24W 24Vdc
026.209
DRIVER DIM PUSH/1-10V 60W 24Vdc
026.190 + 026.260 DRIVER DIM PUSH/0-10V/DALI 60W 24Vdc
Accessories / Accessori / Zubehöre / Accessoires
099.142
Emergency Kit / Kit emergenza / Notfall-Kit / Kit d’urgence (P.644)
022.414
Compatible eletrical box / Scatola di derivazione compatibile
Kompatiblen Anschlusskasten / Boîte de dérivation compatible
PATENTED
PATENTED
Art.
4205
Installation in a horizontal 4 module junction box. Internal measures 121 x 59 mm.
Fixing screws 108 mm (not included).
Installazione in scatola di derivazione a 4 moduli orizzontale. Misure interne 121 x 59 mm.
Viti di fissaggio 108 mm (non inclusa).
Einbau in eine Abzweigdose mit 4 horizontalen Modulen. Interne Maßnahmen 121 x 59 mm.
Befestigungsschrauben 108 mm (nicht im Lieferumfang enthalten).
Installation dans une boite de dérivation à 4 modules horizontaux. Mesures internes 121 x 59 mm.
Vis de fixation 108 mm (non inclus).
Installation in a vertical 3 module junction box. Internal measures 96 x 59 mm.
Fixing screws 83 mm (not included).
Installazione in scatola di derivazione a 3 moduli verticale. Misure interne 96 x 59 mm.
Viti di fissaggio 83 mm (non inclusa).
Einbau in eine Abzweigdose mit 3 vertikalen Modulen. Interne Maßnahmen 96 x 59 mm.
Befestigungsschrauben 83 mm (nicht im Lieferumfang enthalten).
Installation dans une boite de dérivation à 3 modules verticaux. Mesures internes 96 x 59 mm.
Vis de fixation 83 mm (non inclus).
